Wire Stop For 1/4-3/16in EHS
Original price was: $24.34.$17.04Current price is: $17.04.
- Quality Products, Quality Service
- High quality products, hassle-free returns.
- Top-Notch Quality
- Easy, Fast Returns Guarantee
Maximize Cable Strength and Efficiency with Wire Stop

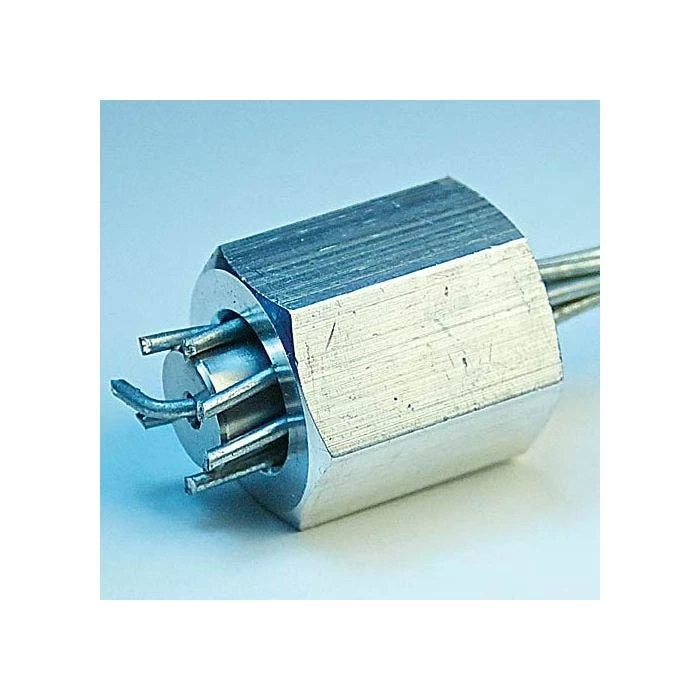

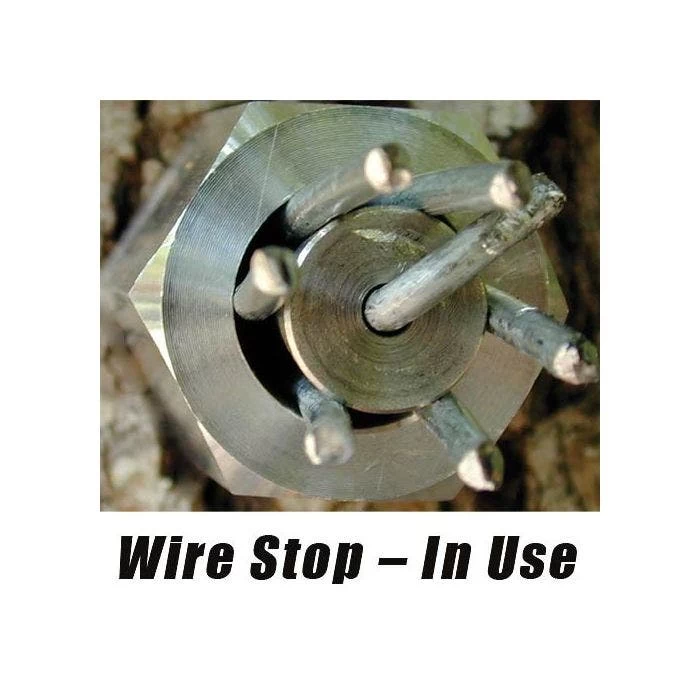

The internal taper of Rigguy’s? Wire Stop? fits over the middle strand of 7-strand EHS cable with the six remaining strands surrounding it. The more pressure that is applied, the deeper into the block the strand and taper are pulled.

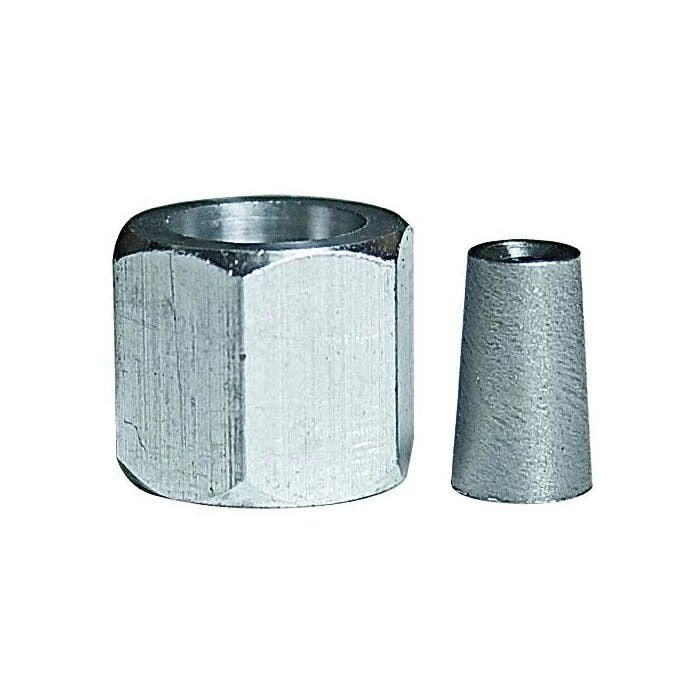

The block is made of 6061 AL and taper is made of 416 SS for strength of application and corrosion resistance. Although the wire stop is only 1 1/4 inches long, it holds close to 100 percent of the breaking strength of the strand itself, which is more than 15,000 pounds (if using 3/8-inch EHS strand).
The Wire Stop? eliminates the need for the “J,” “lag,” “eye,” hooks, thimbles, “through bolts,” “pre-formed wraps,” “wire clips,” or other terminal hardware. It can be used in more applications because it is secured on the outside of the limb or trunk. Because of its small size and simplicity, it makes a more finished, less cluttered, installation.
- Product Name: Wire Stop for 1/4 3/16in EHS
- Internal Taper: Fits over the middle strand of 7 strand EHS cable with the six remaining strands surrounding it
- Pressure: The more pressure that is applied, the deeper into the block the strand and taper are pulled
- Block Material: 6061 AL
- Taper Material: 416 SS for strength of application and corrosion resistance
- Length: 1 1/4 inches
- Breaking Strength: Holds close to 100% of the breaking strength of the strand itself, which is more than 15,000 pounds (if using 3/8 inch EHS strand)
- Eliminates the Need For: “J,” “lag,” “eye,” hooks, thimbles, “through bolts,” “pre formed wraps,” “wire clips,” or other terminal hardware
- Applications: Can be used in more applications because it is secured on the outside of the limb or trunk
- Size and Simplicity: Because of its small size and simplicity, it makes a more finished, less cluttered installation
- This product is covered under A.M. Leonard’s exclusive 30-Day Down to Earth Guarantee. Click Here for more Details.
- The internal taper of Rigguy’s Wire Stop fits over the middle strand of 7 strand EHS cable with the six remaining strands surrounding it.
- The block is made of 6061 AL and the taper is made of 416 SS for strength of application and corrosion resistance.
- The Wire Stop holds close to 100 percent of the breaking strength of the strand itself, which is more than 15,000 pounds (if using 3/8 inch EHS strand).
- The Wire Stop eliminates the need for the “J,” “lag,” “eye,” hooks, thimbles, “through bolts,” “pre formed wraps,” “wire clips,” or other terminal hardware.
- It can be used in more applications because it is secured on the outside of the limb or trunk.
- Because of its small size and simplicity, it makes a more finished, less cluttered, installation.
- The Wire Stop is ideal for landscaping professionals and those looking for a reliable and easy-to-use wire stop solution.
The Wire Stop? is used to eliminate the need for other terminal hardware such as “J,” “lag,” “eye,” hooks, thimbles, “through bolts,” “pre formed wraps,” “wire clips,” etc.
2. What is the breaking strength of the Wire Stop when using 3/8 inch EHS strand?
The Wire Stop holds close to 100 percent of the breaking strength of the strand itself, which is over 15,000 pounds when using 3/8 inch EHS strand.
3. What is the size of the Wire Stop?
The Wire Stop is only 1 1/4 inches long, making it small and easy to use in various applications.
4. What materials is the Wire Stop made of?
The block of the Wire Stop is made of 6061 AL and the taper is made of 416 SS to provide strength and corrosion resistance for the application.
